4 AXIS CNC SLOTTING M/C (X,Y,C,Z AXIS AUTO FEEDING )  ----------  CNC-450

FEATURES:

1. The main machine structure is made of high quality cast iron, X,Y axis and

    Ram guideway are hardened and precision ground.

2. All the slideways,main Ram guideway,and X,Y,Z axis ballscrews are complete

    with automatic lubrication system to ensure the machine running smoothly and

    long life.

3. The swivel head can rotate right and left direction. to ensure optimal keyway

    parallelism,It’s also for helical cutting or taper keyway slotting purpose.

4. Use ultra-high load (Axial dynamic load up to 30 tons) high precision ballscrew

    for Z axis plus full-cycle lubrication system to ensure safe life of ballscrew running.

5. The X,Y,Z axis are complete with HIWIN high precision C3 class double nuts

    ballscrews and precision bearings specially for precision ballscrew to ensure

    position accuracy.

Special Features:

1. Blind holes can be slotted.

2. Cutters are inexpensive and readily available right off the shelf anywhere

    you are.

3. Another advantage is that the cutters can be resharpened.

4. The low running cost will save you more money over the long run, considering

    all the costs together: the cost of the machine, the cutters and other consumables.

    (Compared with key seaters or broaching machines)

5. Any keyway with special width or  tolerance can be divided into multiple cuts

   automatically by a single tool. Which is convenient and highly flexible.

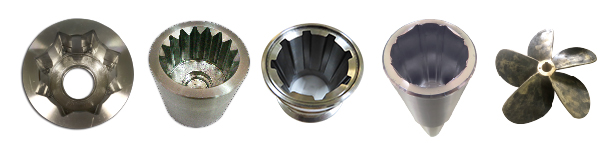

6. Special inner hole slotting such as spline, square, hexagon, polygon hole, groove

    etc are available.

7. Shorter machining time, compared with wire cutting machines.

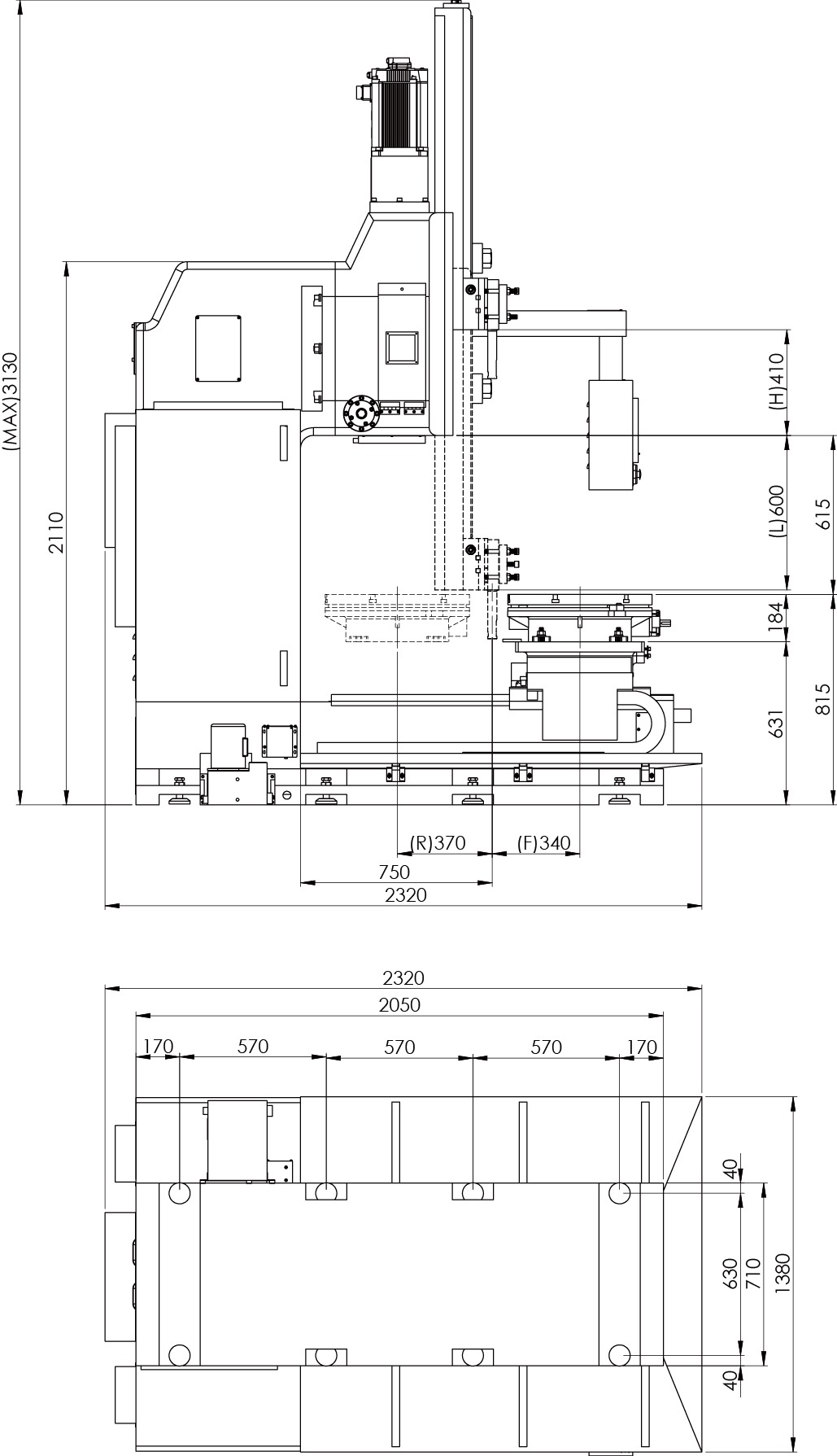

Specification (Mechanism)：Unit mm(inch)

Specifications (CNC Control Unit)：

Standard Accessories：

Optional Accessories：

1. Transformer (except for 220V)

2. 3 jaws scroll chuck

3. Screw chip conveyor

4. Slotting bar

5. Clamping kits set

*Above information are for reference only. The design, spec. and construction are subject to changed without prior notice.
