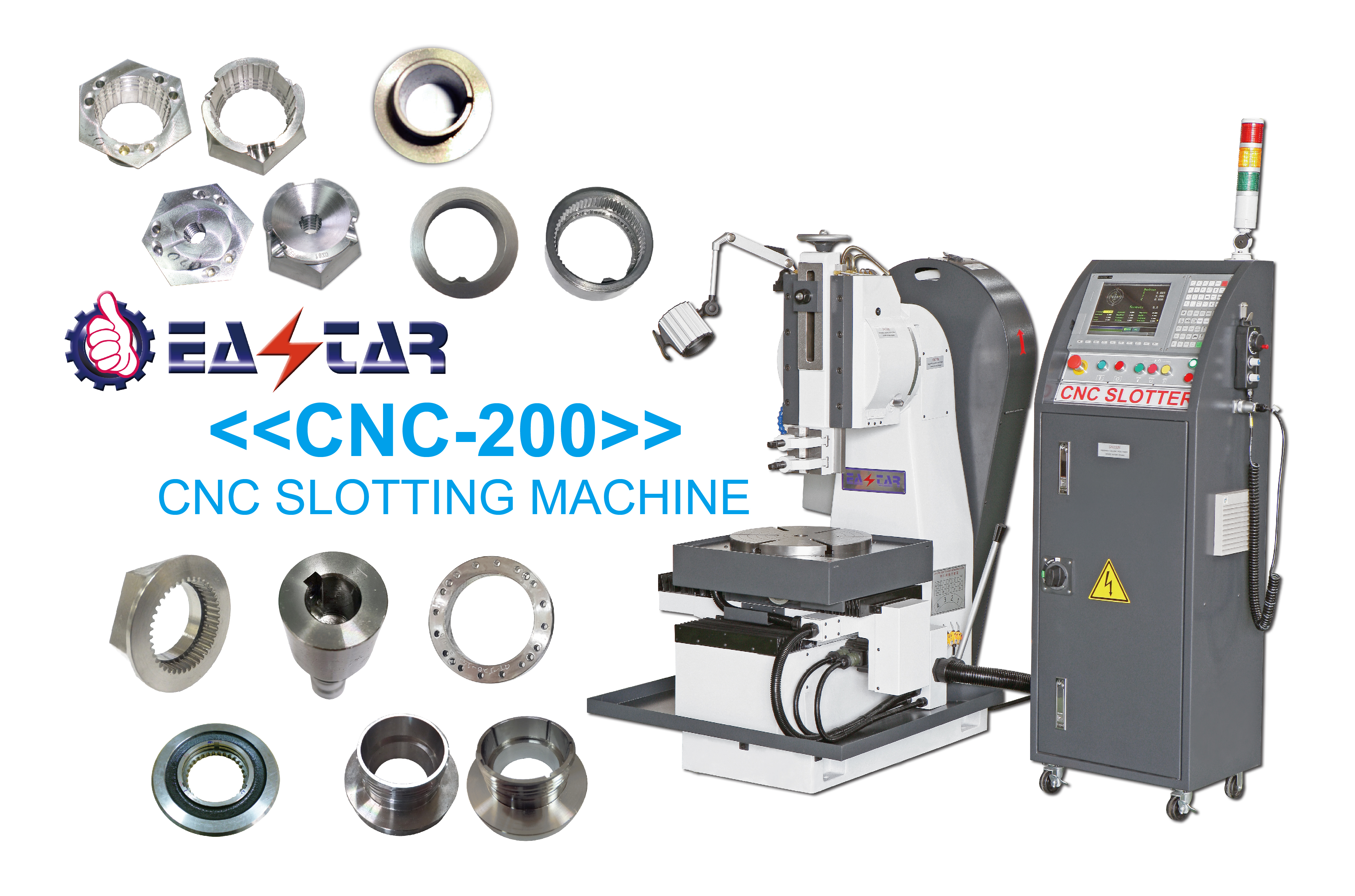

3 Axis CNC Slotting M/C (X,Y AXIS AUTO FEEDING & AUTO DIVIDING) ------ CNC-200
Features：
1. X, Y Axis & Ram slide way hardened and precision ground.
2. Head can swivel ±30° for slotting taper keyway.
3. Use AC-servo motor with high precision C3 ball screw for feeding purpose, best cutting accuracy and long life.
4. Program include auto tool relief function for best slotting surface and prolonging tool's life.
5. Built-in automatic lubrication system to prevent wear.
Specification (Mechanism)：Unit mm(inch)
| Max. travel of the ram (stroke) : | 200 (8") |
| Max. adjusting distance of ram position : | 220 (8.5") |
| No. of stroke per minute (60HZ) spm. : | L: 26-31-36-46 H: 53-62-73-93 |
| No. of stroke per minute (50HZ) spm. : | L: 26-31-36-46 H: 53-62-73-93 |
| Swivel angle of head : | ± 30° |
| Distance between end of ram guideway and work table(A) : | 300 (12") |
| Distance between tooling center and column surface(B) : | 355 (14") |
| Diameter of working table : | Ø400(Ø16") |
| Longitudinal travel of working table (X) : | 250(10") |
| Cross travel of working table (Y) : | 250 (10") |
| Main spindle motor (2 speeds brake motor) : | 2HP 6P/12P |
| Packing dimension : | 1640x1370x1820mm (65"x 54"x 72") |
| Net / Gross weight : | 900/1000 KGS |
Specifications (CNC Control Unit)：
| Cutting feed rate of working table : | 0.0005"-0.02"/stroke 0.01-0.5 mm/stroke |
| X,Y Axis rapid traverse : | 10 m/min |
| Mini indexing unit (degree) : | 0.001° (Auto) |
| X Axis servo motor(Watt / Torquw) : | 1kw |
| Y Axis servo motor(Watt / Torquw) : | 1kw |
| Rotary axis servo motor: | 0.75Kw |
Standard Accessories：
1.X,Y axis C3 ballscrews
2.X,Y axis slideway covers
3.Centralized automatic lubrication system
4.MPG Handwheel
5.Halogen work light
6.Alarm light
7.Adjusting tools & box
8.Programmable auto tool backing off
Optional Accessories：
1.Square Tool Clamping Fixture
2.Transformer (except for 220V)
3.Slotting bar
4.3 jaws scroll chuck
5.Clamping kits set
6.CE standard
*Above information are for reference only. The design, spec. and construction are subject to changed without prior notice.
* For more details, please visit our web site at www.keywaymaster.com.tw *
「Slotting Machine Manufacture The Leading Brand」
--- We are your best partner!
Eastar Machine Tools Corp. is founded in 1967 by Mr.Tang as founder, Original company name called "Tong Shin Machinery" with brand "TANG'S" which were a well known brand name in the machine tool industry worldwide. For more easy to memorize the brand, we change it as EASTAR instead of TANG'S in 2000, and use it till now.
EASTAR has been in Slotting Machine Manufacturing field almost 50 years, Over thousands Slotting Machines are used worldwide, our rich experiences in manufacture give us the edge in contributing the productivity and efficiency for the industrial.
Due to the company growth and the new CNC technology development, we provided many solutions to helping the difficult keyway/spline processing & its multi. applications, Hope in the next new stage, we can offer more cost-efficient precision machine and provide new CNC Slotting technology and solution for our valued customers.
